Waver ControlX
$1,095.00
Waver ControlX is an industrial-grade, cost-effective, Dual-WAN Hotspot gateway designed for professionals who need to deploy large scale WiFi networks. It supports unlimited guest devices connected concurrently on the hotspot network and up to 2Gbps WAN throughput. It has all the features needed to provide high speed connectivity with enhanced reliability all packed in a compact 1U rackmount chassis. Thanks to the integrated PointX CM platform, it can be used also as a private controller for centralized remote management of other WAVER devices.
Dispatch within 48 hours
Shipping from Fort Worth, TX
$1095.00
Available on backorder

INTEGRATED CAPTIVE PORTAL BUILDER

ANALYTICAL STATS
& GRAPHS

INTEGRATED DIGITAL MENU BUILDER

GUEST USER DATA CAPTURE

EMAIL/SMS CAMPAIGN AUTOMATION

COMPATIBLE WITH
ANY ACCESS POINT

OFFER PAID INTERNET ACCESS

STANDALONE DEVICE WITHOUT FEES
FEATURES
- Ideal for Large scale deployments (Service Providers, Malls, Resorts, Ships, Public Places, Airports, etc.)
- Supports Unlimited guest devices connected concurrently (up to 4k Active Guests tested)
- Aluminium 1U Rack-mountable chassis
- 2x WAN with Load-Balance/Link Failover
- 2x Power Supply Units for redundancy
- Up to 2Gbps WAN throughput
- Advanced Firewall and DoS Attack protection
- Integrated PointX CM Private Cloud – Centralized remote management for other WAVER devices
- User friendly Administration Interface for easy configuration and management
- Responsive Guest Captive Portal with six fully customizable themes
- Integrated Captive Portal Editor – Custom Texts, Colors, Buttons, Images, Video, Logos, Languages, Hyperlinks etc.
- Multilingual guest experience (multiple language selection – admins can translate contents to up to 140 languages)
- Multiple Guest Login options: Free, Email, Facebook Login, Mobile/SMS, User/pass, QR Login and Prepaid Access
- Captive portal support for external content (web images, videos, jscript, chat platforms, iframes etc.)
- Custom Terms – Privacy texts and User Data retention policy settings (GDPR Compliant)
- Integrated Digital Menu – Multilingual, fully customizable with guest self-ordering and checkout capabilities
- Analytical Statistics and Graphs, Guest data capturing, CSV Export and third-party user data sync
- User data synchronization: MailChimp List or scheduled periodic upload to FTP Server
- Guest network and guest devices session, speed and time limits
- Printable custom user/pass tickets with your custom titles, texts and validity settings
- Custom user/pass tickets with three printing layout options: QR Login, Logo, Batch print
- User/pass management from third-party software via API (HTTP API)
- Prepaid Internet plans (time/data quotas) via the integrated payment portal accepting PayPal or credit cards
- 10-Star Guest Rating System with redirection capabilities to external websites such as TripAdvisor, Google Places etc.
- Automated Email/SMS delivery for marketing purposes or delivery of individual Email/SMS discount coupons
- Integrated Discount coupon code management system for use by employees
- Limited access user accounts for User Manager and Coupon Code Management system
- 100% Software white-labeling option available (custom admin interface logos, texts)
- Centralized Remote management via the PointX CM cloud platform (optional)
- Free Cloud service for direct remote Web UI access (works behind NAT)
- Connection Tracking module for tracking guest user access with Syslog/remote logging capabilities
- VPN Service – PPTP and L2TP/IPSec VPN Client
- Scheduled operation for Ethernet ports
- VLAN Tagging (Protocols IEEE 802.1Q/C-Tag 802.11ad)
- Centralized Access Point Management for Mikrotik APs (CAP Mode)
- Works with any Access Point/AP Controller
-
- User friendly Administration Interface for easy configuration and management
- Responsive Guest Captive Portal with six fully customizable themes
- Integrated Captive Portal Editor – Custom Texts, Colors, Buttons, Images, Video, Logos, Copyright Texts, Hyperlinks etc.
- Custom Terms – Privacy texts and User Data retention policy settings
- Guest device session, speed and time limits
- Multiple Guest Login Options with data capturing: Free, Email, Facebook Login, Mobile/SMS, User/pass and Paid Access
- Analytical Statistics and Graphs with Export and third-party synchronization options
- User data synchronization: MailChimp List or scheduled periodic upload to FTP Server
- Can store internally up to 65000 user data entries
- Supports up to 200 Guest devices connected concurrently
- Printable custom user/pass tickets using your business logo, titles, texts and validity settings
- 10-Star Customizable Guest Rating System with comments and redirection capabilities
- Prepaid Internet plans via the integrated payment portal using PayPal or credit card as checkout methods
- Automated Email and SMS Discount Coupon Code system
- Limited access user account for Coupon Code Manager and User Manager
- User/pass management from third-party software via API
- Scheduled WiFi and Ethernet Guest Port operation
- Integrated Dual-Band 733 Mbps AC WiFi
- Two Separate Guest and Local Networks (WiFi & Ethernet)
- VLAN Tagging (Protocols IEEE 802.1Q/C-Tag 802.11ad)
- Guest Ethernet Port with PoE-Out 24V (Extends guest network to other APs)
- Works with any Access Point/AP Controller
POINTX CM
PointX CM (embedded in CTRX-110)
Centralized management solution for WAVER Devices
WAVER products are completely standalone devices, which means that no subscription or license that needs to be renewed is required. You can manage a device using the local web interface, or if you have multiple devices, centrally through a CTRX-110 installed in your main office, as a private cloud controller. PointX CM is a platform that allows administrators to remotely manage multiple WAVER products in one place. No mater where WAVER Guest WiFi Hotspots are located, this tool gives the ability to administrators to configure the devices remotely and access all stored data from a single location. Administrators have the ability to customize captive portal contents and appearance, edit guest session/time settings, Wi-Fi settings or even lock remotely WAVER devices based on schedule. Captured guest user data from Facebook Login, Email Connect, Mobile Login, Username Authentication etc. can be synced with PointX CM based on the configuration of each sync profile. Initial configuration of remote devices requires minimal configuration on client side, which makes the system perfect for managing multiple devices/hotspots in remote, retail chain environment or SaaS business model under your brand with separate sync profile/settings for each customer.

Key Features
- Reduces the work required to configure the system remotely
- Simplifies and automates system maintenance tasks
- Centralized remote device settings and guest user data management
- Centralized remote management of Captive Portal content, appearance and settings
- Secure Encrypted 128-bit AES Communication between remote devices and PointX CM
- Schedule or instant remote device locking: Disable interfaces, WiFi, Ethernet, Reset (SaaS business model)
- White-label: Branded PointX Administration interface: Logo, Titles, Login page
- Analytical Statistics and Graphs with advanced data filtering capabilities
- Unlimited Sync Profiles – Multiple Hotspot deployments managed in one place
- Multi-level Limited access and management user accounts: Profile and page access based
- HTTP API for third party user data management
- Zero-configuration needed on client site (plug & play on remote side)
- PointX version integrated with ControlX CTRX-110 can manage up to 50 remote WAVER devices
Remote Management Capabilities (on each profile)
- User data syncing: Email, Facebook, Mobile, User/pass, Free, Login Logs
- Centralized User/pass credentials management (applies centrally also for time/data limits)
- Real time Active Guest monitoring on remote devices
- Guest feedback system user feedback logging and management
- WiFi Management: Radio operation & TX Power, Local WiFi SSID/WPA2, Guest WiFi SSID/WPA2
- Captive Portal: Preview, Splash page, Authentication, SMS Validation, Terms, Feedback, Languages, Theme Editor, Images & Videos
- Campaign Manager: Email/SMS Automation, Email/SMS Discount Coupons, Email/SMS Connectivity settings
- Payment Portal: Payment plans, Settings, Appearance (Texts, Images, SMS Texts)
- Guest Network: Bandwidth & Device Limits, Time Session Limits, Walled Garden, Guest Ethernet, VLAN Settings
- Device Settings: Data Retention Policy, Time & Region, Security, Remote Device Lock feature (scheduled or instant)
- Device Maintenance: Hardware Information, Firmware update and system reboot
Requirements on ControlX CTRX-110 side (Main office)
- Internet Access
- Static IP or Domain name
- Public PointX access (port 80)
Requirements on Remote side
- Internet Access (works behind NAT – no forwarding required)
SPECIFICATIONS
Hardware
Main CPU/RAM: 1.5GHz Quad-core 64-bit / 2GB
Network CPU/RAM: 1.4GHz Quad-core / 1GB
Buttons: 1x Reset (Factory reset & TFTP Recovery)
Activity LEDs: Power, Status, PSU1, PSU2, Ethernet Ports
PSU /AC Inputs: 2xPSU, 2xIEC Sockets
AC Input Range: 100-240V
Max. Power Consumption: 25W
Operating Temperature: -30°C to +60°C
Installation: Rack Mountable or Flat surface
Dimensions: 444 x 152 x 45 mm
Weight: 1.8kg
Ethernet
WAN Throughput: 2Gbps
WAN Interfaces: 2x WAN/Internet 10/100/1000M
LAN/MGMT Interfaces: 3x LAN 10/100/1000M
Guest Interfaces: 5x Guest Port 10/100/1000M
DOCUMENTATION

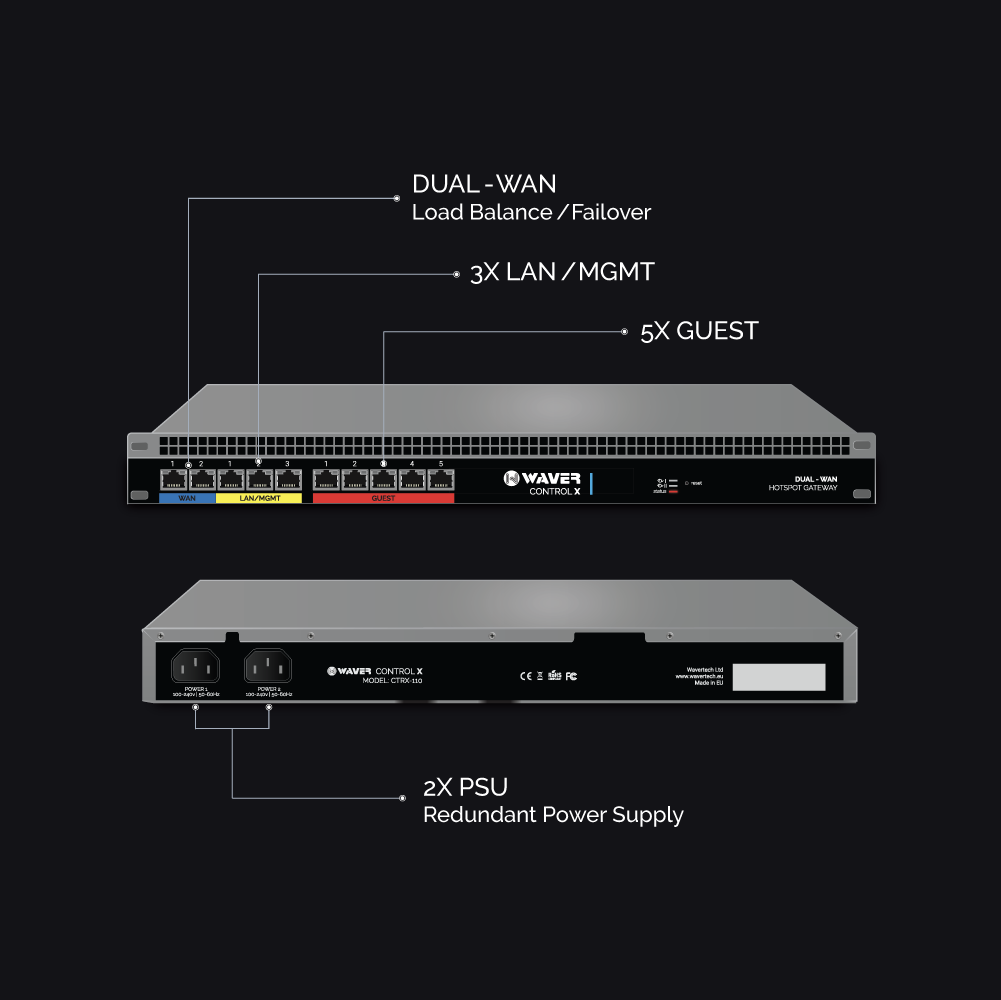

Hardware Overview
Enterprise hotspot gateways should be made of true industrial-grade hardware components. ControlX offers enterprise-grade reliability combined with top-class network processing power.

2x WAN GbE Ports with Load Balance/Failover
3x LAN/MGMT and 5x GUEST GbE Ports
2x Redundant Power Supply Units
1U Rackmount Aluminum Chassis
Fanless - totally silent cooling design
